20’x15′ Enclosure

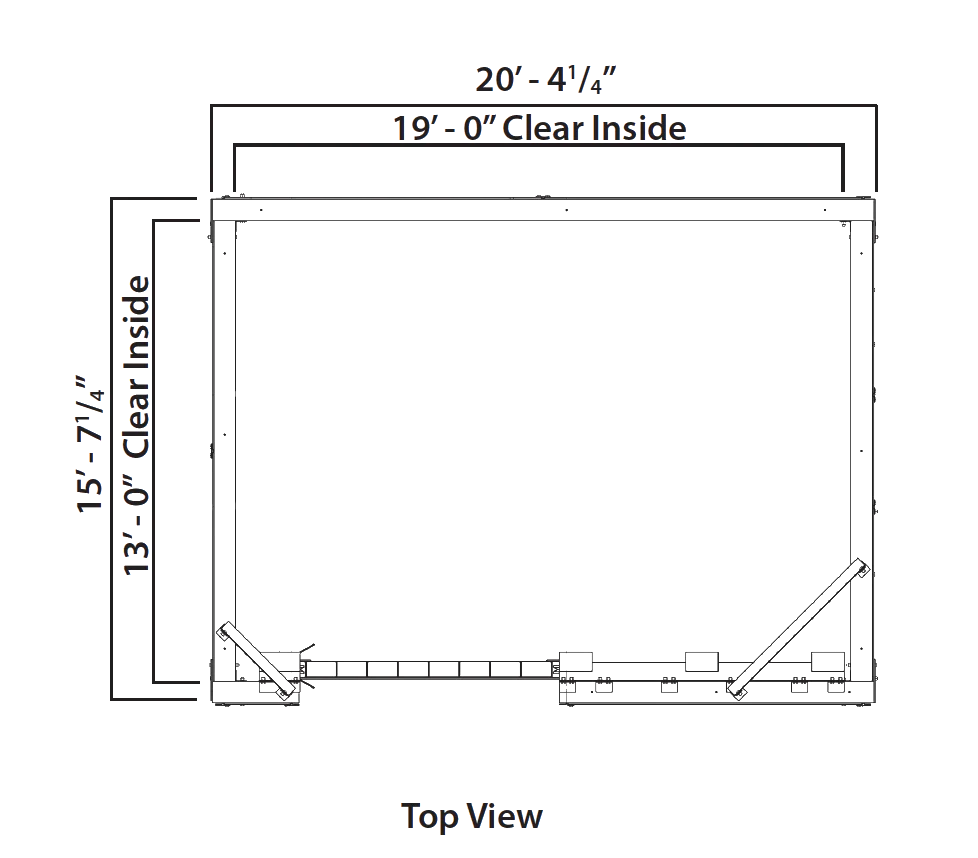

Standard 20’L X 15’W X 10’H open top
Model # RBI-002
Each of our enclosures is designed to be modular with special engineering attention given to designing enclosures that will contain projectile sizes at maximum testing pressure.

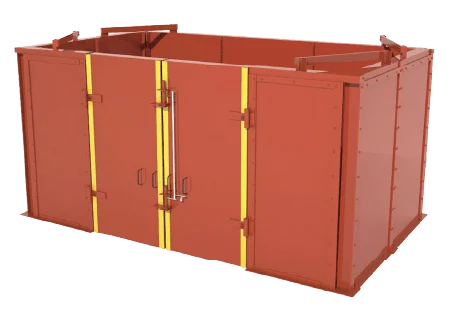

The 20’x15’ enclosure is designed to maximize your shop space and increase productivity while keeping operators safe. The enclosure has 5/8” thick steel walls and a top bracing system. The functional design features a 7.5’ air-operated sliding door and a 3’ sliding man door. Sliding doors keep swinging doors out of the way of isles and other operations.
The enclosure design is pre-assembled with the required wiring, plumbing and other infrastructure in place. Arriving on-site ready to be lifted into place, each enclosure eliminates the need for outside contractors to be on-site for extended periods.
Specifications
Maximum testing pressure (Hydro) – 10,000 psi
Two sliding doors
One 7.5’ equipment door
One 3’ sliding man door (side)
Top bracing system
Door and lock sensors
Push-button controls
Plywood Lining
Applications
Oil & Gas
aerospace
automotive
Military
Medical
