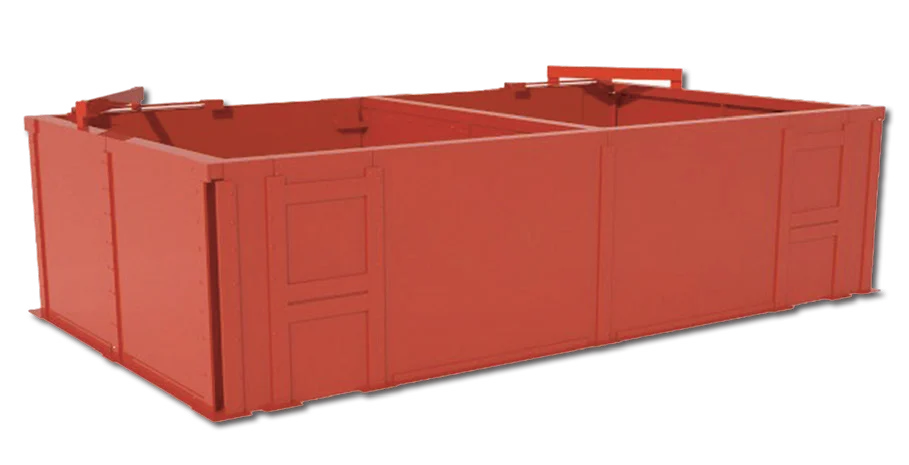

26’x13′ Enclosure

Double Cell 26’L X 13’W X 8’H

Model # RBI-026

Each of our enclosures is designed to be modular with special engineering attention given to designing enclosures that will contain projectile sizes at maximum testing pressure.

For maximum testing pressure accommodations of 10,000 psi and maximized shop space and safety, look to our double cell 26’×13’ enclosure model.

The enclosure design is pre-assembled with the required wiring, plumbing and other infrastructure in place. Arriving on-site ready to be lifted into place, each enclosure eliminates the need for outside contractors to be on-site for extended periods.

View our product catalog

Specifications

Maximum testing pressure (Hydro) – 10,000 psi

Two 4’ sliding doors (front),

Two 3’ sliding doors (back)

Top bracing system

Push-button controls

Door and lock sensors

Plywood lining

Two 13’ x 13’ test cells

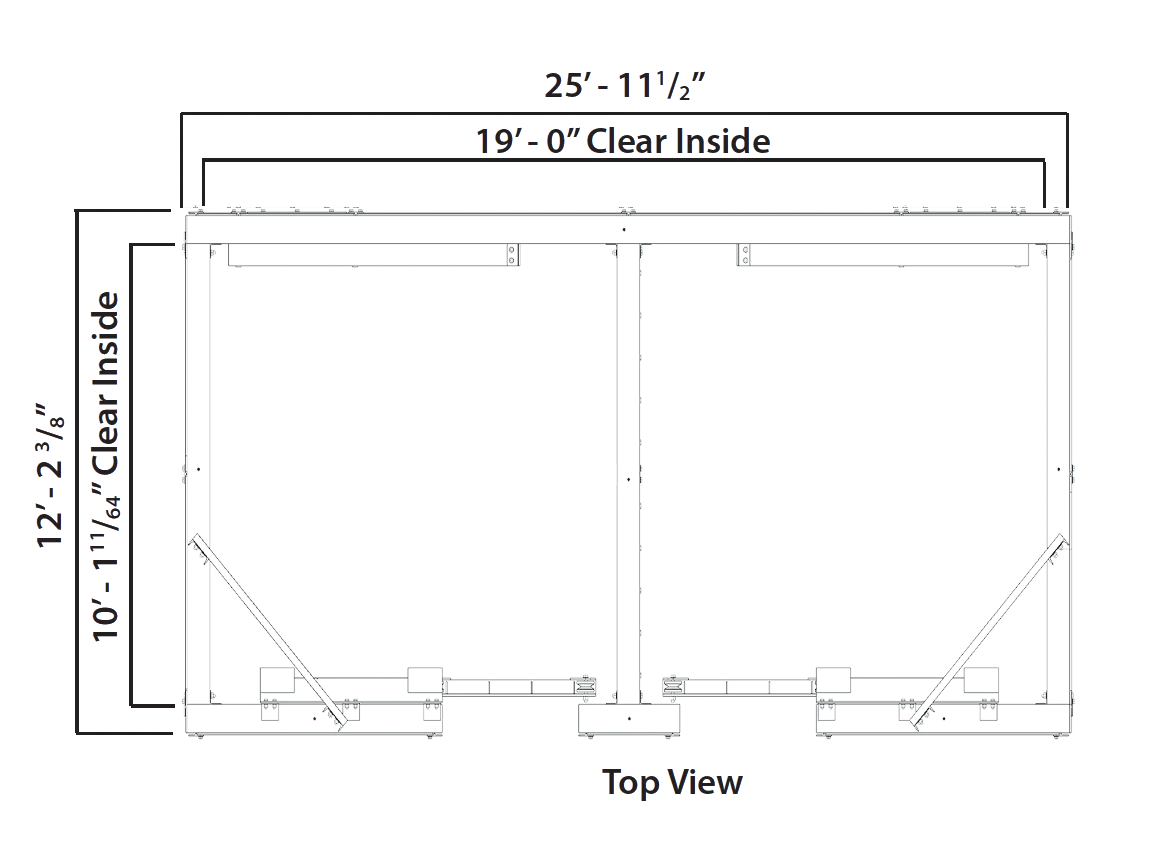

26x13 enclosure drawing specs

Applications

Icon of an oil rig

Oil & Gas

Icon of an airplane

aerospace

Icon of a car

automotive

Icon of three stars and two chevron stripes

Military

medical icon

Medical

Features

plc control options

Camera System and DVR

Center wall opening with swing doors

drip pan

Closed Top with Crane Slot

Protection From Blasts and Maximum Pressures

Want to know more about our Enclosure Products?
